A failed battery support bracket can stop field work before the battery itself fails. When the battery box shifts, cables pull against terminals, insulation can chafe, corrosion spreads faster, and starting faults become intermittent. The damage often appears during planting, spraying, transport, or harvest, when downtime is most expensive.

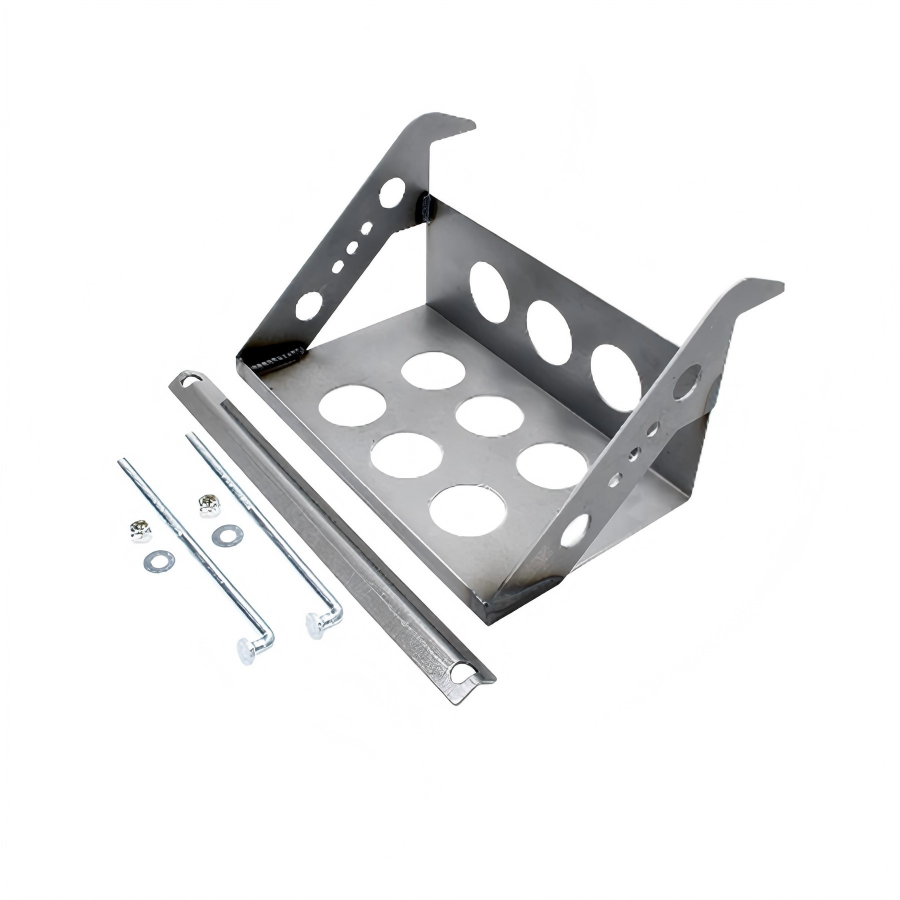

For buyers evaluating a Tractor Battery Box Bracket, the decision is not only replacement price. It is a fitment, durability, and lifecycle-cost decision under vibration, shock loads, washdowns, mud, fertilizer exposure, and rough terrain. The available options include OEM replacement, used OEM parts, aftermarket direct-fit brackets, reinforced redesigns, welded assemblies, and custom fabrication. This bottom-of-funnel guide helps maintenance teams, procurement buyers, fleet managers, rebuilders, and OEM/ODM evaluators compare bracket options for Agricultural Tractors using fitment proof, material quality, serviceability, supplier documentation, and total cost.
A Tractor Battery Box Bracket should be evaluated as a structural retention component, not a commodity metal part; fitment, weld quality, load handling, corrosion resistance, and service access directly affect uptime.
The best option depends on tractor platform, model-year or serial range, battery size, mounting geometry, duty cycle, terrain severity, and whether the bracket interfaces with a heavy-duty seat support pedestal or adjacent structural assemblies.
Lowest purchase price often produces higher total cost when rework, installation mismatch, early fatigue cracking, battery damage, cable replacement, and field failures are included.
Shortlisting should combine dimensional compatibility, part-number validation, material/process quality, supplier documentation, condition verification for used parts, and realistic installation risk.
A reinforced sheet metal battery box bracket may be enough for moderate upgrades, while a premium welded structural component is usually justified when recurring failures, heavier batteries, or severe field vibration are present.
The bracket is part of the tractor’s battery retention system. It must hold the battery box position during vibration, braking, turning, transport bounce, loader work, and implement shock. If it flexes, the battery can move against covers, steps, fenders, frame members, or seat-related structures.
Battery movement creates electrical and mechanical risk. Cables may pull against terminals. Ground continuity may become inconsistent. Hold-down parts may loosen. Nearby sheet metal may show contact marks. These symptoms often appear as starting problems, rattling, cracked welds, or repeated fastener loss.
Field conditions increase the load. Mud, standing water, fertilizer residue, acid exposure, washdowns, and temperature swings all affect bracket life. A suitable bracket must support retention, corrosion control, cleaning access, and predictable battery service.
The bracket is the structural mounting interface. It is not always the tray, battery box, cover, clamp, strap, or bolt kit. Product listings may show a wider assembly, so the purchase scope should be verified before ordering.
| Component | Primary Function | Common Buying Risk |
Battery box bracket | Supports or mounts the battery box or tray to the tractor | May be sold as a bare bracket without hardware |
Battery tray or box | Carries or encloses the battery | May be distorted or corroded even after bracket replacement |
Hold-down hardware | Prevents vertical and lateral battery movement | May be missing from listings or incompatible with larger batteries |
Accessory hardware | Includes spacers, bolts, isolators, clips, and backing plates | Incorrect grade, coating, or length can cause loosening |
Maintenance teams should treat the following signs as bracket-related warnings:
Cracked welds, bent flanges, rusted edges, or visible distortion.
Elongated mounting holes or fasteners that loosen repeatedly.
Battery box sagging, rattling, or shifting under vibration.
Contact marks on covers, steps, cables, fenders, or seat structures.
Chafed insulation, strained terminals, or poor ground continuity.
Corrosion around drain points, trapped debris, chipped coating, or bolt holes.
Replacing only the battery rarely fixes these issues. The support structure must be inspected at the same time.
A clear shortlist starts with measurable requirements. Buyers should define:
Battery group size, mass, height, terminal orientation, and hold-down style.
Hole spacing, slot length, offsets, depth, flange height, and tray footprint.
Expected field vibration, transport shock, and service-life target.
Required finish, including powder coat, e-coat, galvanizing, plating, primer, paint, stainless, or raw steel.
Battery removal path, cable reach, inspection visibility, cleaning access, and tool clearance.
Acceptable installation scope, from direct bolt-on to welding or full custom fabrication.
Fitment should be based on the actual machine, not only a model name. Older tractors may have repaired mounting points, relocated batteries, changed trays, or non-original cable routing.
Make, model, series, year range, and serial number range.
Engine configuration and cab or open-station layout.
Regional variant, if the battery location differs by market.
Existing battery position, group size, tray footprint, and box style.
Terminal orientation, ground location, and cable routing.
Left-hand or right-hand orientation.
Mounting interface on frame, fender, step, side panel, or seat support assembly.
Before removal, photographs should show the bracket from several angles. Useful photos include bolt holes, welds, underside surfaces, cable routing, and nearby obstructions.
Original part numbers help reduce ordering errors. They should be checked with superseded numbers, revision codes, stamped marks, and application notes. A cross-reference must match mounting geometry, not only the same general tractor family.
Broad phrases such as “fits many models” are not enough. The safer standard is a drawing, a verified application table, or a direct comparison against measured tractor-side geometry. Fleet buyers should also document approved cross-references by model, serial range, and battery configuration.
The purchase scope affects labor and installation risk. A bare bracket may be acceptable when existing hardware is reusable. A kit is safer when bolts, spacers, captive nuts, isolators, or hold-down parts are worn or missing.
Confirm whether the part is a single side, mirrored pair, or welded assembly.
Check whether hardware, spacers, reinforcement plates, or isolators are included.
Verify thread size, grade, locking method, finish, and bolt length.
Specify packaging that protects coated edges, flanges, and welded corners.
Each sourcing path carries a different risk profile. New OEM parts are often preferred when exact interchangeability matters. Used OEM brackets may support older tractors if condition is verified. Aftermarket brackets can reduce cost when dimensions and materials are documented. Reinforced and custom solutions fit recurring failures, heavier batteries, modified machines, or severe field duty.
| Option | Best Use Case | Main Benefit | Main Risk |
OEM replacement | Standard tractor layouts needing exact interchange | Known mounting geometry and faster repair | Higher cost, limited supply, or obsolete part numbers |
Used OEM | Older or discontinued models | Original design and possible cost savings | Hidden fatigue, corrosion, bent flanges, or poor returns |
Aftermarket direct-fit | Cost-controlled repairs with verified dimensions | Availability and scalable purchasing | Variable gauge, coating, hole alignment, or documentation |
Reinforced sheet metal | Moderate upgrades where original layout still works | Improved stiffness without full redesign | Added gussets may affect clearance |
Welded structural assembly | Severe vibration, heavier batteries, or high downtime cost | Higher load margin and controlled stress flow | Higher price, tighter tolerance needs, and sample approval time |
Custom assembly | Modified platforms, OEM/ODM programs, or integrated structures | Exact geometry, repeatability, and service-access control | Longer lead time, drawing approval, and validation responsibility |
An OEM replacement is usually the lowest installation-risk option for a standard tractor. It is suitable when the original bracket lasted for an acceptable service interval. It also helps where warranty records, familiar geometry, and fast turnaround matter.
Used brackets can serve older machines when new parts are unavailable. Condition is the deciding factor. Buyers should request clear photos of mounting faces, bolt holes, weld zones, underside surfaces, tabs, and stamped identifiers. Elongated holes, heat marks, weld patches, and deep pitting should be treated as rejection signals.
Aftermarket direct-fit options can be cost-effective. The word “fits” should still be verified. Hole spacing, bracket depth, flange direction, orientation, and clearance must match the tractor. Material thickness and coating quality should also be documented.
A reinforced Sheet metal battery box bracket can be adequate when the original layout is acceptable, but fatigue life is weak. Useful upgrades include gussets, wider bearing surfaces, formed ribs, better bend radii, larger washers, and improved fastener distribution. The added structure should not block battery removal or cable clearance.
A premium welded structural component is usually justified for severe terrain, heavier batteries, recurring cracking, or tractors working during high-cost operating windows. Weld design should be reviewed as part of the load path. Joint layout, penetration consistency, gusset placement, heat distortion, and weld-to-hole distance all affect service life.
Custom fabrication is relevant when no available part matches the tractor-side geometry. It is also useful when the bracket integrates with a modified battery tray, frame reinforcement, or adjacent heavy-duty seat support pedestal. Drawing approval, prototype review, pilot installation, and revision control should be required before production.
Fitment proof should come from measurements, not images alone. Key dimensions include:
Hole pattern, hole diameter, and center-to-center spacing.
Slot length, adjustment range, offsets, and bracket depth.
Tray width, flange height, battery box footprint, and material thickness.
Mounting face direction, left/right orientation, and mirrored geometry.
Clearance around cables, terminals, covers, frame rails, steps, and fenders.
The battery removal path needs separate review. A bracket may bolt on correctly while still making service difficult. Forced cable movement, blocked terminal access, or unnecessary panel removal increases maintenance risk.
The bracket may share loads with frame members, side panels, steps, fenders, battery tray supports, or seat-related assemblies. A stronger bracket is not always the full solution. If surrounding metal is already fatigued, it may transfer loads into weaker points.
Local stress can be reduced with backing washers, spacers, isolators, bushings, or reinforcement plates. These items must match the bracket design. They also need enough tool access for removal and reinstallation.
Battery mass affects fatigue life. Dual-battery setups, taller batteries, and upsized replacements increase the moment load on the support. Terminal orientation also matters because cable strain can loosen connections or damage insulation.
Operating profile should be realistic. A low-hour utility tractor faces different loads than a tractor used for transport, tillage, loader work, or rough field passes. Repeated implement shock can fatigue bends, weld toes, mounting holes, and narrow tabs.
Installation scope should be defined before purchase. A direct bolt-on bracket is different from a part requiring drilling, slotting, shimming, welding, or cable rerouting. Field repairs usually have fewer tools and less alignment control than shop repairs.
Before approval, the installer should confirm:
Mounting holes align without forced preload.
Battery hold-downs fit the selected battery size.
Positive terminal clearance meets internal safety practice.
Cables reach without tension or sharp bends.
Covers, shields, and access panels reinstall correctly.
Gauge thickness matters, but it is not the only strength factor. Formed geometry can add stiffness without unnecessary weight. Effective sheet metal designs use bend radii, flanges, ribs, gussets, and larger bearing areas to spread load.
Weak designs often fail at predictable locations. Sharp bends concentrate stress. Narrow tabs tear near holes. Unsupported spans flex until coating cracks. Hole edges placed too close to bends or welds can fatigue early. Poor edge quality also reduces coating coverage.
Weld appearance alone does not prove durability. A clean bead may still have poor joint layout, undercut, insufficient fusion, or heat distortion. A welded bracket should be checked for fixture accuracy, repeatable hole position, consistent weld location, and controlled stress flow.
For production orders, inspection criteria should be defined. Visual inspection may be enough for low-risk parts, but critical assemblies may need first-article inspection, dimensional checks, fixture records, and documented corrective action for nonconforming batches.
| Material or Finish | Strength | Corrosion Behavior | Typical Use |
Carbon steel | Good stiffness and weldability | Needs reliable coating | Most formed and welded tractor brackets |
Stainless steel | Good strength with higher material cost | Better resistance in wet exposure | Corrosion-sensitive applications |
Aluminum | Lower weight but design-sensitive fatigue behavior | Good general resistance, with compatibility checks | Special designs where weight reduction matters |
Powder coat | Depends on base material | Good coverage, but chips expose edges | Common replacement and aftermarket brackets |
E-coat or plating | Depends on base material | More uniform coverage in complex geometry | Higher consistency production requirements |
Bracket geometry should avoid pockets that trap mud, water, crop residue, or fertilizer. Drain holes, open shapes, sealed seams, and proper coating access can reduce corrosion risk. Reinforcement should not create hidden debris traps.
Hardware should match the design. Bolt grade, coating, thread engagement, locking method, spacers, isolators, and captive nuts all affect service life. Incomplete hardware kits often create delays and inconsistent field repairs.
Durability features should connect to operating outcomes. Better forming, reinforced holes, gusseted corners, and controlled welds reduce fatigue risk. Improved coatings reduce corrosion-driven replacement. Accurate fitment reduces rework, protects cables, and lowers the chance of secondary damage.
Service access affects labor cost. Open geometry helps technicians inspect corrosion, clean debris, remove the battery, and recheck fasteners. Clear cable routing reduces chafing and terminal strain. Standard hardware reduces tool variation across fleet maintenance.
Direct cost includes unit price, tooling, sample cost, coating upgrades, hardware kits, packaging, and freight. Indirect cost often decides the better option.
Technician time for drilling, shimming, welding, or correcting alignment.
Downtime during planting, spraying, haying, transport, or harvest.
Battery damage, cable replacement, hold-down replacement, or related structural repair.
Return costs when compatibility claims are unclear.
Inventory complexity from mixed versions without revision control.
| Buying Priority | Likely Best Option | Required Verification |
Lowest upfront cost | Used OEM or low-cost aftermarket | Condition photos, hole integrity, and fitment measurements |
Balanced service life | Reinforced sheet metal bracket | Material thickness, finish, reinforcement layout, and clearance |
Harsh-duty field use | Welded structural assembly | Weld design, gusset placement, dimensions, and pilot install |
Older obsolete machine | Used OEM or custom fabrication | Straightness, corrosion, geometry, and tractor-side condition |
Fleet standardization | Supplier-supported repeat part | Drawings, revision control, packaging, labels, and repeat availability |
Technical evidence should be requested before price comparison. Useful documents and details include:
Dimensioned drawings with hole locations, offsets, tolerances, and interface views.
Material grade, thickness, finish, and coating expectations.
Photos of welds, mounting faces, underside surfaces, and included hardware.
Compatibility notes by model, serial range, orientation, and battery configuration.
Clarification on bracket-only supply, paired brackets, or full support kits.
Marketplace listings should be checked carefully. Buyers should confirm the exact part name, side orientation, return policy, and kit contents. Generic photos can hide missing tabs, weak welds, distorted flanges, or wrong mounting faces.
Used brackets need condition-specific photos. The most useful images show bolt holes, bends, welds, undersides, edges, tabs, and any repaired areas. A vague condition grade should not replace visual evidence.
Repeat orders require process control. RFQs should ask whether the bracket is laser cut, stamped, punched, formed, welded, machined, or assembled from multiple parts. Inspection should cover hole position, flatness, weld quality, coating coverage, and dimensional repeatability.
Welded assemblies need fixture control. Without it, holes and mating faces can drift between batches. Approved samples, first-article inspection records, and revision-controlled drawings help reduce repeat purchasing risk.
Commercial terms should match field maintenance needs. Relevant questions include MOQ, lead time, sample availability, pilot order terms, packaging method, replacement policy, warranty process, urgent replenishment support, and volume pricing. Seasonal timing matters because late parts can be more costly than higher unit prices.
Custom sourcing requires complete inputs. The RFQ should include tractor-side measurements, photos, drawings, battery size, load assumptions, duty cycle, environmental exposure, material requirements, finish, weld standard, hardware scope, packaging needs, annual volume, prototype quantity, and validation expectations.
No drawing, no dimensions, or no confirmed compatibility data.
Generic “heavy-duty” claims without material, gauge, finish, or process details.
Unclear orientation, missing hardware scope, or generic reference images.
Product photos that hide welds, holes, mounting faces, or underside surfaces.
Supplier unwillingness to support samples, photos, or technical questions.
| Risk Type | Typical Signal | Risk Reduction Step |
Fitment risk | Misaligned holes, wrong offset, wrong side, or cover interference | Measure tractor-side geometry and perform a pilot install |
Structural failure risk | Cracking at bends, welds, gussets, holes, or tractor-side mounts | Review stress points, reinforcement, weld design, and surrounding structure |
Corrosion risk | Rust at edges, seams, bolt holes, coating chips, or debris pockets | Specify finish, check edge coverage, add drainage, and touch up damage |
Installation risk | Drilling, cable strain, lost access, missing hardware, or poor tool clearance | Use an installation SOP, hardware list, torque practice, and cable checks |
Supply risk | Variable batches, incomplete kits, long lead times, or undocumented revisions | Keep approved samples, drawings, labels, and internal compatibility records |
Repair can be reasonable when damage is local. Examples include isolated cracks, minor edge corrosion, one-time impact damage, or hardware loss. The original geometry must remain intact, and the tractor-side mounting structure must be sound.
Reinforcement fits repeated failures at predictable stress points. Gussets, backing plates, larger washers, or better fastener distribution may extend service life. The change should not create interference or transfer excessive load into weaker surrounding metal.
Replacement is safer when corrosion is advanced, holes are elongated, flanges are bent, welds are repeatedly cracking, or the bracket no longer holds alignment. It is also better when battery size has changed or multiple tractors need standardization.
Custom redesign is justified when no OEM, used, or aftermarket option matches the actual tractor configuration. It also fits modified battery locations, integrated seat-support structures, frame reinforcement, or OEM/ODM programs needing repeatable production quality.
Document the current failure mode. Photograph cracks, corrosion, loose hardware, cable wear, battery movement, and contact marks. Identify whether the failure began at a bend, weld, hole, fastener, or tractor-side structure.
Measure the tractor-side mounting geometry. Record hole spacing, offsets, face angles, clearance envelope, bracket depth, and orientation. Include nearby frame, step, fender, cover, and seat-support interfaces.
Review supplier documentation. Confirm material, thickness, finish, hardware scope, compatibility, packaging, and install requirements. Remove options that rely on unsupported fitment claims.
Perform a pilot install. Install one sample on a representative tractor. Check hole alignment, cable reach, terminal clearance, battery retention, cover fit, and service access.
Inspect after initial operation. Recheck fasteners, coating damage, movement, cable routing, and early contact marks. Approve, revise, or reject the bracket before bulk purchasing.
The final bracket choice should be based on verified fitment, field load, battery configuration, surrounding structures, service access, supplier proof, and lifecycle cost.
Audit the failed bracket and record the exact failure point.
Confirm tractor-side measurements, orientation, and battery configuration.
Request drawings, photos, material data, finish details, and hardware scope.
Run a pilot install before approving fleet-wide use.
Compare options by total cost, not purchase price alone.
A: Heavy-duty performance depends on load path design, reinforcement, weld quality, mounting hole support, fitment accuracy, corrosion protection, and service access. Thickness helps, but poor geometry can still crack under vibration.
A: The bracket should be compared against tractor-side measurements and supplier drawings. Hole spacing, offsets, orientation, battery box footprint, cable clearance, cover fit, and serial-range compatibility should all be checked before purchase.
A: It can be strong enough when gauge, bend radii, flanges, ribs, gussets, hole reinforcement, and coating are properly specified. A poorly formed bracket can fail even when the steel is thicker.
A: It is worth considering when tractors carry heavier batteries, run on rough terrain, show repeated bracket cracking, or operate during high-cost downtime windows. Weld quality and fitment proof still need verification.
A: A used bracket may work for older or obsolete tractors if it is straight, crack-free, lightly corroded, and has intact holes and welds. Condition photos and return terms should be confirmed.
A: Fastener tightness, cable routing, terminal clearance, battery retention, cover fit, coating damage, and contact marks should be checked after initial field operation. Early inspection helps catch loosening or interference before failure develops.
