Before the invention of hydraulic attachment systems, tractor operation was inherently lethal. Older models relied entirely on fixed rear drawbars for field operations. This mechanical setup made heavy drafting highly inefficient. More dangerously, high-axle pulls routinely caused sudden, fatal backward flips when implements caught on buried obstacles. Modern linkage systems transfer equipment weight, maintain continuous tire traction, and physically prevent these catastrophic rollovers.
Despite these engineered safeguards, operator error and neglected hardware maintenance regularly disrupt agricultural operations. Mismatched pins and loose sway bars directly cause crushed tires, shattered PTO shafts, destroyed implements, and severe bodily injury. These errors force operations to absorb thousands of dollars in machinery downtime and voided manufacturer warranties. Operators must master structural load limitations, establish correct hardware compatibility, and enforce strict safety protocols to lower total operating costs. This manual details the precise technical evaluations, safe connection frameworks, and hardware maintenance required to operate a Tractor 3-Point Hitch Frame safely and efficiently.
Physics-Driven Safety: The geometry of the hitch is designed to create downward force ("squat") during heavy draft loads. Towing heavy objects from the top link or an elevated 3-point drawbar alters this geometry and guarantees an instant, fatal backflip.
Standardized Compatibility: Never use improvised pins. Implementing correctly sized Category I, II, or III hardware prevents "slop," which otherwise destroys welded parts and elongates hitch holes over time.
The Golden Hook-Up Rule: Always attach the fixed left draft link first, use the turnbuckle-adjustable right link second, and connect the top link last. Use mechanical leverage (crowbars), never bodily force, to align heavy equipment.
Scalability via Upgrades: Transitioning to telescoping draft links or Quick-Hitch systems (like the John Deere iMatch) drastically reduces attachment time, lowering labor costs and eliminating physical strain for single-operator setups.
The three-point attachment geometry relies on distinct physical principles to maintain operational safety. Prior to this design, rigid drawbars pulled implements directly behind the tractor. When a ground-engaging implement like a plow struck a buried rock, the rear tractor wheels continued rotating against the static resistance. This rotational force caused the front axle to lift off the ground rapidly, resulting in a lethal backward rollover that crushed the operator.
The modern A-frame linkage design physically prevents this outcome through precise geometric vectors. The lower pivot points attach forward of and below the rear axle centerline. When an implement encounters sudden, immovable resistance, the load distribution shifts immediately. The bottom arms pull backward against the lower chassis. Simultaneously, the top link pushes forward and upward against the top bracket. This unique torque geometry forces the front end of the tractor downward. The chassis "squats" into the dirt. The rear wheels intentionally lose traction and spin out, entirely neutralizing the rotational force that causes a backflip.
Draft links operate as the primary load-bearing arms lifting your heavy equipment. They handle immense tension and compression forces during active field work. Operators must routinely inspect the welded structure of these lower arms. Heavy loads induce micro-cracks near the pivot joints over years of use. Identifying these fractures early prevents mid-operation structural failure and dropped implements.
The top link functions as the central stabilizing arm. It controls the attached implement's tilt and pitch across uneven terrain. Adjusting the threaded barrel extends or retracts the arm, allowing rotary cutters or plows to maintain a parallel angle to the ground. Sway bars, also known as check chains or stabilizers, provide lateral restriction. They link the rear axle housing directly to the lower lift arms.
Failing to secure sway bars introduces severe risks. Loose turnbuckle sway bars allow implements to swing violently side to side. When navigating uneven pastures, heavy implements like fertilizer spreaders will swing directly into the inner sidewalls of the rear tractor tires. This contact causes catastrophic, non-warrantied tire destruction. Operators must tighten stabilizer chains before executing any field tasks.
Agricultural attachment hitches utilize standardized categories dictated by engine horsepower and implement weight. Understanding these strict categories prevents dangerous hardware mismatches. Category specifications mandate exact pin diameters and optimal lateral hitch spacing to safely distribute load forces.
Hitch Category | Tractor Horsepower | Top Link Pin Diameter | Draft Link Pin Diameter | Standard Hitch Spacing |
Category 0 | Up to 20 HP | 5/8 inch (16 mm) | 5/8 inch (16 mm) | 20 inches |
Category I | 20 to 45 HP | 3/4 inch (19 mm) | 7/8 inch (22 mm) | 26 inches |
Category II | 40 to 100 HP | 1 inch (25 mm) | 1 1/8 inches (28 mm) | 32 inches |
Category III | 80 to 225 HP | 1 1/4 inches (32 mm) | 1 7/16 inches (36 mm) | 38 inches |
Cross-category mismatching creates immediate operational hazards. Implement lift pins must precisely match the draft link ball joints. Inserting a Category I pin into a Category II lift arm without proper steel adapter bushings leaves a 1/4-inch gap. This gap generates violent mechanical instability. The implement will slam back and forth inside the lift arms during transport, causing metal fatigue.
Operators frequently attempt unsafe, makeshift connections when attaching farm implements. They replace missing, hardened lynch pins with loose framing nails, unrated carriage bolts, or thin wire. These improper fasteners lack the sheer strength required to handle agricultural torque. They bend and snap during operation, dropping implements directly into the soil while the tractor is moving.
These temporary fixes severely impact your machinery budget. Loose connections generate mechanical "slop" throughout the entire system. Constant vibration and heavy impacts transfer directly to the precision-engineered components of the frame. Perfectly round steel linkage holes repeatedly smash against loose pins, eventually deforming into oval or "egged-out" holes. This type of damage requires you to scrap the parts or hire professionals to execute specialized welding processes to fill and re-drill the draft link ends.
Connecting heavy equipment safely relies on strict sequence discipline. Breaking this sequence introduces physical strain and injury risks. Follow these precise steps for manual implement attachment:
Square the Tractor: Reverse the tractor so the rear tires sit perfectly parallel to the implement. Stop the machine, engage the parking brake, and shut the engine off completely to prevent hydraulic misfires.
Attach the Fixed Arm First: On most tractor frames, the left draft arm maintains a fixed, non-adjustable length. Slide the left ball joint over the implement pin. Secure it immediately with a certified lynch pin.
Adjust the Turnbuckle Arm: Move to the right-side draft arm. This side features a mechanical leveling box or threaded turnbuckle. Crank the turnbuckle to raise or lower the right arm until it aligns with the implement pin. This bypasses the need to manually deadlift a 500-pound implement.
Lock the Top Link: Attach the central top link last. Adjust its threaded barrel to align with the implement's upper mast. Insert the locking pin to secure the implement's pitch.
Single operators frequently encounter misalignment issues when connecting heavy machinery alone. The "crowbar method" solves microscopic alignment problems without risking back injuries. Drive a pointed steel pry bar into the dirt directly under the implement's lower pin. Use the crowbar as a fulcrum to lever the heavy equipment sideways by an inch or two. Never use your hands or lower back to muscle static machinery.
Another single-operator tactic involves managing the lower lift arms during reversing. Empty draft links swing inward freely, actively blocking the implement pins as you back up. Apply the "spreader hack" to maintain clearance. Attach a heavy-duty bungee cord or a ratcheting spreader clamp between the two lower links. Force them outward. This provides a wide, unobstructed target area as you reverse the tractor into the implement.
You must observe the crushing zone avoidance rule at all times. Never position yourself between the rear tractor tires and a heavy, freestanding implement while the engine runs. Adjusting hydraulic lift controls while standing on the ground is lethal. Older hydraulic valves suffer from internal seal leaks and can drop heavy implements instantly, causing fatal crush injuries.
Connecting a Power Take-Off (PTO) shaft requires absolute compliance with mechanical safety rules. Never approach a PTO shaft or attempt a connection while the tractor engine idles. Rotating output splines will catch loose clothing, shoelaces, or jacket strings in milliseconds. This results in traumatic amputation or fatal entanglement.
Connecting PTO locking collars requires finesse, not brute force. Ambient dirt and rust easily freeze the locking collar's internal ball bearings. Spray a dry graphite lubricant or WD-40 heavily inside the PTO collar. Actuate the collar back and forth manually until the ball bearings retract smoothly. Slide the collar over the tractor's output splines and push forward. You must hear a distinct, metallic "click" to confirm positive mechanical locking.
Always finalize the safety mechanisms before engaging the PTO clutch. Lower the plastic PTO safety shield over the rotating shaft. Clip the anti-rotation safety chains to stationary anchor points on the tractor chassis. These chains stop the outer plastic guard from spinning simultaneously with the internal steel shaft. Finally, raise the implement's parking stand and pin it securely in the upright position.
Operations that require multiple implement changes per day lose hours of labor to standard draft link alignments. Fixed arms require millimeter precision when backing up the tractor. Missing the alignment mark by a fraction of an inch forces the operator to remount the tractor, pull forward, and attempt the reversing process again.
Upgrading to telescoping draft links yields an immediate return on investment. Telescoping ends allow the operator to back the tractor into the general vicinity of the implement. The operator dismounts, pulls a locking pin on the draft arm, and manually extends the steel slide up to three inches. The operator slides the arm directly onto the implement pin. Once both sides are pinned, the operator reverses the tractor slowly. The extended arms slide backward into their heavy steel housings and snap automatically into a rigid, locked position.

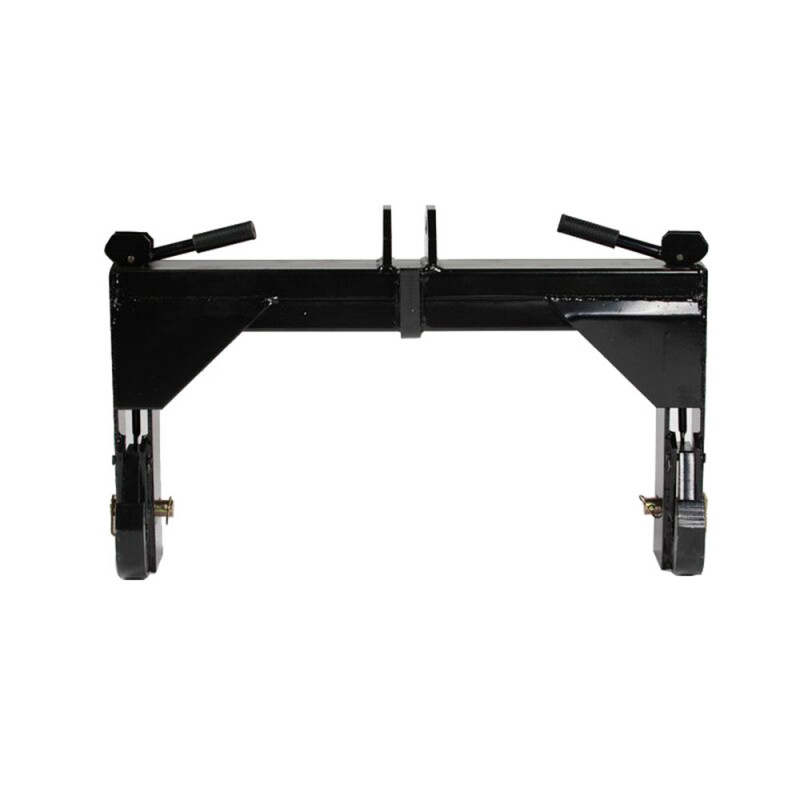

Quick-Hitch systems offer a permanent solution for operations managing large implement fleets. These heavy-duty steel attachments bolt directly onto your existing three-point arms. They convert the traditional pin-through-hole connection into an open-hook system, eliminating the need to physically lift or wrestle with implement pins.
Operating a Quick-Hitch relies on hydraulic visibility. The operator remains seated in the cab. They reverse the tractor while watching the system's top hook. Once the top hook aligns directly under the implement's upper mast pin, the operator raises the hydraulic lift arms. This upward motion simultaneously engages the two lower implement pins into the bottom Quick-Hitch hooks. The operator reaches backward, throws the dual locking levers down, and drives away.
You must evaluate hardware compatibility before purchasing this system. Older implements manufactured before current ASABE sizing standards rarely fit a modern Quick Hitch. The vertical distance between the lower pins and the top mast pin varies wildly on vintage equipment. Operators must either purchase specialized adapter bushings or cut and re-weld older implement frames. Modifying equipment ensures it fits standard Quick Hitch dimensions securely.
Woodland operations subject tractor frames to extreme torque and vibration. PTO-driven wood chippers harness the full horsepower of the tractor engine. The three-point frame absorbs massive rotational torque generated by heavy steel flywheels processing thick timber. Establish a strict 50-foot safety perimeter to protect bystanders from high-velocity wood debris.
Execute the "butt-end first" hydraulic infeed protocol for chippers. Feed thick branches base-first and allow the hydraulic feed rollers to pull the material inward. Never push branches into the chute with your hands or feet. If the tractor frame experiences sudden, severe vibration, disengage the PTO clutch immediately. Heavy vibration indicates dull cutting blades, missing flywheel weights, or jammed wood material.
Log hitches (skidding attachments) provide exceptional utility for timber operations. Lifting the leading edge of a heavy log via the three-point hitch reduces ground drag resistance. It prevents deep ruts and severe turf damage across your property. This setup is highly cost-effective compared to purchasing dedicated, motorized timber skidders. It also outperforms unpowered log arches or heavy grapples that require large front-end loaders to lift timber safely.
Employ a heavy-duty plastic skidding cone when pulling logs. A skidding cone slides over the leading end of the timber. It prevents the log from violently snagging on hidden stumps, exposed roots, or large rocks. Sudden snags send massive shock loads directly into the tractor's transmission housing via the hitch frame. Note that steep-terrain skidding alters the tractor's center of gravity rapidly. It strictly requires an approved Rollover Protection Structure (ROPS), fastened seatbelts, and front-end suitcase weights to maintain steering traction.
Improper towing practices cause the highest rate of fatal tractor accidents. Never wrap tow chains around the top link bracket. Never utilize an elevated 3-point cross-drawbar to pull out deeply rooted stumps, extract stuck pickup trucks, or drag heavily loaded pallets across the ground.
Towing heavy loads from a high anchor point above the rear axle center of gravity guarantees mechanical disaster. It entirely negates the Ferguson safety geometry. Pulling horizontally from an elevated point turns the entire tractor chassis into a mechanical seesaw. The high-leverage force lifts the front tires off the ground. The tractor pivots backward over its own rear axle in under one second, offering the operator zero reaction time before being crushed.
You must separate the function of a swinging drawbar from a 3-point cross-drawbar. A 3-point drawbar spans the lower lift arms. It is strictly designed for moving light, frequently disconnected loads, such as moving empty trailers around a flat yard. It lacks structural rigidity for horizontal pulling. For all heavy towing tasks, you must attach chains to the tractor's fixed, low-mounted swinging drawbar. This anchor point sits below the rear axle, preserving horizontal stability and preventing rollovers.
Agricultural equipment operates continuously in brutal, corrosive environments. Heavy dirt, caked mud, and ambient moisture rapidly degrade moving parts. These elements lock up threaded top links and leveling arm turnbuckles. Once these components freeze solid, making field adjustments becomes physically impossible, destroying operational efficiency.
Implement a strict cleaning and lubrication schedule. Require regular pressure washing for the entire rear chassis to remove hardened soil. Once the metal is completely dry, apply liberal amounts of multi-purpose lithium grease to all threaded components. Coat the top link threads heavily. Twist the central barrel in and out to its maximum limits to distribute the lubricant deeply into the grooves. This prevents internal rusting and thread galling.
Address hidden friction points directly. Many lower linkage ball joints lack standard grease zerk fittings. Operators must manually apply grease directly to these metal components. Scoop heavy grease and rub it directly into the ball swivel joints using your fingers. Rotate the ball joints to work the grease inside the metal housing. This simple action mitigates friction heat and prevents premature metal-on-metal wear.
Establish strict hardware tracking habits to prevent losing welded parts and pins in the field. When unhooking implements, gather all loose hardware immediately. Store all lynch pins, top link pins, and R-clips together in a dedicated, sealed tractor toolbox. Take reference photos on a smartphone before disassembling complex linkages. Reassembling linkages incorrectly creates dangerous mechanical slop.
Tractors require specific hardware configurations when driven without implements. Implement strict top link protection protocols. Leaving the top link fully extended and dangling freely invites damage. Backing the tractor over uneven terrain, backing into dirt mounds, or striking an implement will bend the exposed threaded shaft irreparably. A bent top link cannot be repaired and requires full replacement. Always retract the top link threads completely and secure the assembly upward in its designated metal holding clip.
Execute an empty draft link mitigation strategy. Driving a tractor at high speeds without an attached implement allows the lower lift arms to swing violently. They will bounce outward and smash into the inner sidewalls of the rear tires, shredding the rubber. They also frequently catch on narrow gate posts or fencing while turning. Loosely secure both lower arms together utilizing a heavy-duty bungee cord. This binds them centrally, neutralizing lateral swinging damage.
Audit your current tractor hitch hardware to identify and replace any field-improvised fasteners, worn R-clips, or unrated bolts with certified lynch pins.
Measure your lower lift arm mounting holes with calipers to detect early signs of "egged-out" wear before the metal suffers structural failure.
Inspect and physically adjust your turnbuckle sway bars to guarantee proper clearance between your implements and the inner walls of your rear tires.
Apply heavy-duty lithium grease manually to all threaded top link barrels and lower linkage ball joints to prevent rust and thread galling.
Evaluate your daily operations and purchase a Quick-Hitch system or telescoping draft links if you disconnect implements more than twice per week.
A: Without proper adapter bushings, the pins will fit loosely, causing severe vibration and "slop" that damages the tractor's hitch frame and the implement's welded structure over time.
A: Dirt and lack of lubrication freeze the locking collar's ball bearings. Cleaning the splines, applying a dry lubricant or WD-40, and strictly ensuring the engine is off restores a smooth connection.
A: No. Using a 3-point hitch, top link, or elevated 3-point drawbar for heavy horizontal pulling alters the tractor's center of gravity above the rear axle and can cause a fatal rear rollover. Always use the tractor's lower fixed swinging drawbar for heavy pulling.
A: Sway bars (or stabilizers) restrict the lateral (side-to-side) movement of an implement. Without them, implements can swing violently into the tractor's rear tires, causing severe punctures and shredding the rubber.
A: Minor wear requires certified welding processes to fill and re-drill the holes. Severe wear compromises the structural integrity of the metal components, requiring full replacement of the draft link ends.
