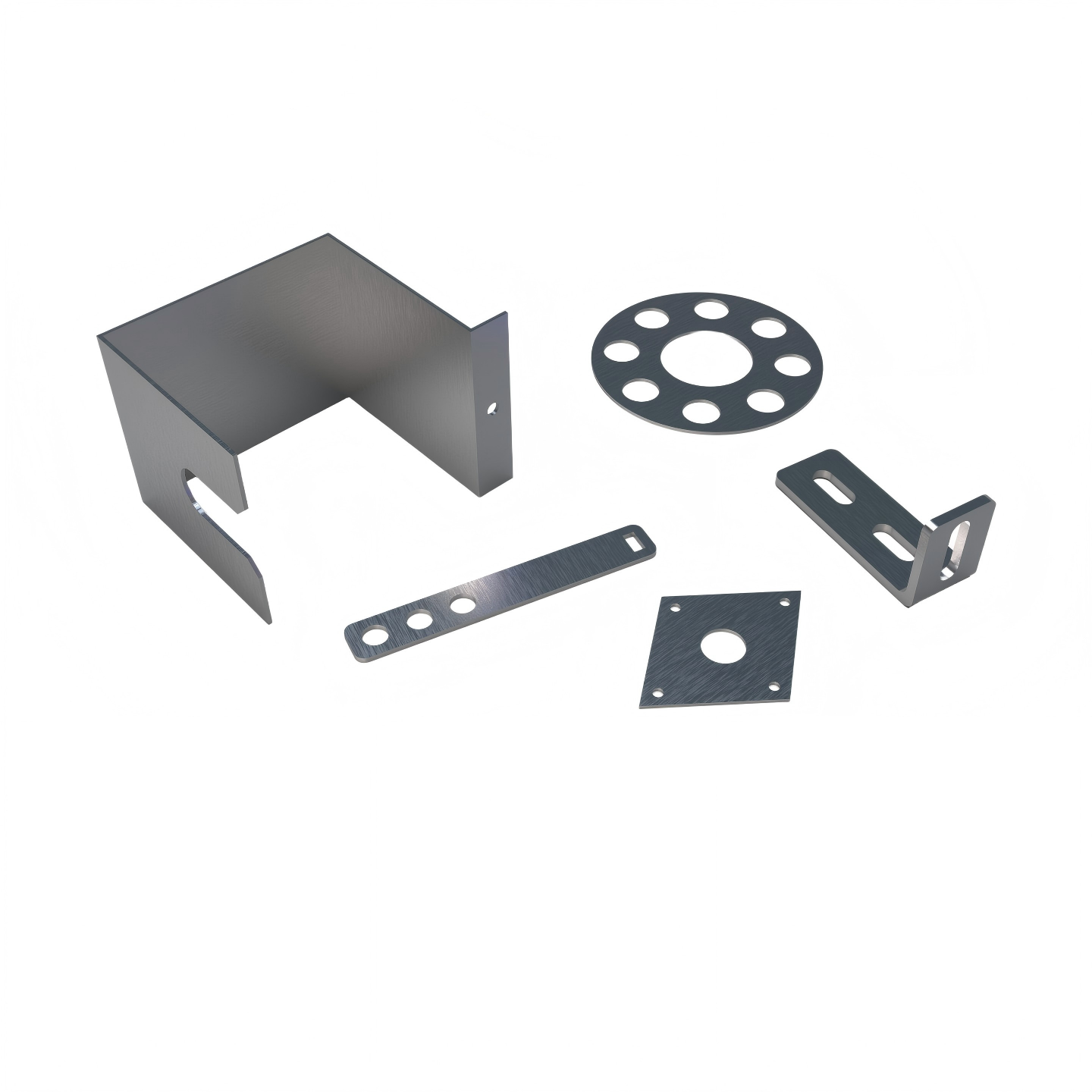

Laser Cut Steel Mounting Bracket for All Farm Machinery Parts

In farm equipment, bracket failure rarely begins as a dramatic break. It usually appears as vibration, hole misalignment, cracked welds, loose fasteners, coating damage, burr-related assembly delays, or repeated field adjustment. A low-cost bracket can therefore create high-cost downtime when it weakens mounting, shifts component position, shortens corrosion life, or slows assembly. OEMs, aftermarket manufacturers, and repair-part buyers need parts that fit repeatably across loaders, seeders, harvesters, sprayers, tillage tools, trailers, snow equipment, landscaping attachments, municipal vehicles, and utility attachments. A Laser Cut Steel Mounting Bracket is often the right route when custom geometry, accurate holes, controlled bends, and revision flexibility matter more than hard-tooling economics.

The selection still must be evidence-based. Material, thickness, edge quality, coating, inspection, supplier scale, and total cost all determine whether the bracket performs through seasonal vibration, washdowns, mud, chemicals, and field shock loads. Those conditions often arrive during short planting and harvest windows.

Key Takeaways

• A laser cut steel mounting bracket is usually the best fit for custom, high-mix, low-to-mid volume farm machinery parts where hole accuracy, bend consistency, and design flexibility matter more than lowest tooling cost.

• The real evaluation criteria are not just material and price; they include tolerance control, burr height, heat-affected zone control, edge quality, weld distortion risk, corrosion protection, inspection discipline, and repeatability across production lots.

• For agricultural use, the bracket must be specified around environment and load: vibration, mud, fertilizer exposure, UV, washdowns, chemical contact, debris impact, and seasonal shock loads all affect material, coating, and joint design.

• Strong suppliers can show end-to-end capability—cutting, bending, CNC machining, drilling, tapping, welding, hardware insertion, finishing, assembly, and dimensional verification—plus documented quality checks on first article and production parts.

• For heavy-duty farm machinery support, supplier capability should be matched to bracket class: light-gauge sensor brackets, 12 ga stainless or carbon steel support brackets, 1/4" plate equipment brackets, and 1/2" heavy structural brackets may require very different cutting power, press brake tonnage, fixturing, and inspection methods.

What a Laser Cut Steel Mounting Bracket Must Achieve in Agricultural Equipment

A farm machinery bracket often controls the load path, mounting face, or service position of another part. It may hold engines, guards, hydraulic valves, sensors, alternators, reservoirs, control boxes, hitch interfaces, trailer hardware, snow equipment mounts, or frame connection points.

In practical use, reliable equipment mounting means load transfer, bolt retention, limited flex, fatigue resistance, and stable alignment under vibration. reliable equipment positioning means hole-to-hole accuracy, consistent datum locations, repeatable bend geometry, and repeatable fit across service replacements.

Small dimensional errors can create large equipment problems. A shifted hole may misalign a hydraulic valve, driveline shield, sensor, pump, alternator, or attachment interface. It may also force line workers or field technicians to slot holes, ream features, add shims, or force fasteners.

Operating conditions that change bracket design

Decision-stage success criteria

• Fit: first-time assembly without slotting holes, forcing bolts, reaming, or field shimming.

• Strength: acceptable deflection, fatigue resistance, and weld integrity for the intended load path.

• Durability: corrosion protection matched to mud, chemicals, washdowns, UV, and abrasion.

• Manufacturability: geometry that can be cut, bent, welded, tapped, coated, and inspected consistently.

• Supply: repeatable production quality, realistic lead time, stable reorders, and controlled revisions.

When Laser Cutting Is the Right Manufacturing Choice

Laser cutting suits high-mix, low-volume, and mid-volume agricultural bracket programs. It performs well when the part needs complex holes, slots, tabs, lightening features, or design changes. A Laser cut steel mounting bracket for machinery support can be revised by updating a cutting program rather than rebuilding a die.

This route fits prototype builds, pilot lots, seasonal variants, custom attachments, replacement parts, and aftermarket programs. It is also useful when one supplier must produce L-brackets, Z-brackets, U-brackets, gusseted supports, frame tabs, and welded assemblies from shared material inventory.

Process comparison

Laser cutting may not be the best choice for extremely simple flat parts, very high-volume stamped parts, or precision bearing interfaces. In those cases, it may need machining, reaming, boring, or another process.

Bracket Types and Fabrication Challenges Buyers Should Recognize

Bracket geometry determines the risk profile. A simple shape can still fail if the bend, hole location, finish, or weld position is poorly controlled.

Common bracket classes

Heavy-duty parts may require higher-power fiber lasers, higher-tonnage press brakes, qualified welders, and robust fixtures. A supplier focused only on light sheet work may not match 1/4 inch or 1/2 inch structural bracket needs.

How to Specify a Laser Cut Steel Mounting Bracket Correctly

Material selection by application risk

Material choice should follow load, environment, coating plan, and service life. The cheapest grade may become expensive if it increases field failures or corrosion claims.

Thickness, geometry, and load path

Geometry can increase rigidity without simply adding thickness. Gussets, formed ribs, return flanges, channel sections, and wider bend zones can reduce flex and weight.

• Avoid narrow tabs beside high-load holes.

• Keep adequate edge distance around fasteners.

• Remove sharp internal corners near stress paths.

• Provide weld access before the design is released.

• Check long unsupported flanges for vibration-driven fatigue.

Installation features and tolerance control

Holes, slots, tapped features, welded nuts, captive hardware, and access clearances directly affect assembly speed. Tapped holes reduce assembly steps but need thread verification. Welded nuts add strength but can introduce spatter and distortion. Captive fasteners can reduce service time when material thickness and insertion force are controlled.

The drawing should define the datums that control mating surfaces. Key tolerances usually include hole location, slot position, hole-to-bend distance, bend angle, flange position, flatness, thread location, and parallelism. High-quality laser cutting may reach around ±0.005 inch on suitable materials and geometries. Well-controlled CNC bending may hold around ±0.5 degree. Those values should be applied only where function requires them.

• Identify the mounting datum and mating part first.

• Mark critical-to-function holes, slots, and bends.

• Assign tighter tolerances only to functional features.

• Define the inspection method before production release.

Edge quality and corrosion protection

Edge quality affects handling, bolt fit, welding, fatigue performance, and coating adhesion. Buyers should define acceptable burr condition, deburring method, and whether oxidation-free edges are required. Nitrogen-assisted cutting can produce cleaner edges, especially for stainless steel and parts moving directly into welding, passivation, powder coating, or e-coating.

Manufacturing Workflow Buyers Should Expect

• Cutting: Fiber laser cutting should deliver repeatable profiles, stable hole quality, and controlled edge condition. Gas selection matters. Nitrogen supports cleaner edges, while oxygen can improve carbon steel cutting efficiency but may leave oxide.

• Nesting and material handling: Batch consistency depends on controlled programs, correct sheet identification, clean material flow, and disciplined nesting. Small parts may need micro-tabs that are later removed.

• Deburring and edge preparation: Automated deburring, vibratory finishing, grinding, or hand work may remove dross, sharp edges, and micro-tab scars. Stainless parts require separate handling to avoid carbon-steel contamination.

• Forming and bending: CNC press brakes, proper tooling, springback compensation, angle correction, and crowning help maintain flange length, bend angle, and parallelism. Bend sequence should be reviewed before release.

• Machining, drilling, and tapping: Reaming, countersinking, counterboring, milling, drilling, and tapping may be needed for functional features. Threads should be verified after tapping and after coating when buildup may reduce engagement.

• Welding and assembly: MIG welding is common for carbon steel agricultural weldments. TIG welding suits stainless and cleaner low-heat work. Robotic MIG can improve repeatability when fixtures and volumes justify it.

• Finishing and final checks: Cleaning, blasting, masking, coating, plating, passivation, or oiling should match the specification. Final checks should verify holes, threads, bends, welds, coating, labeling, and packaging.

Quality Metrics Buyers Should Use

A precision metal fabrication component should be judged by measurable outputs, not broad quality claims. The most useful metrics connect directly to fit, durability, and repeatability.

Inspection intensity should match risk. Stable repeat parts may use sampling plans. Launch-stage, safety-related, or high-load brackets may require 100% inspection of critical features.

How to Evaluate Suppliers for Capability, Quality, and Scale

Capability questions

• What material grades and thicknesses can be cut and formed reliably?

• What laser power, gas options, nesting software, and edge-quality controls are used?

• What press brake tonnage, bed length, tooling, crowning, and backgauge controls are available?

• Can the supplier handle L, Z, U, gusseted, and heavy plate brackets repeatably?

• Can it manage machining, drilling, tapping, hardware insertion, coating, assembly, and packaging?

• Does it have agricultural equipment experience, not only general sheet metal experience?

Quality system and process discipline

Strong suppliers can show controlled drawings, revision history, material traceability, calibrated gauges, documented inspection plans, and first article inspection reports. Welded agricultural brackets may also require structured welding procedures and qualified personnel.

• ISO-based quality systems provide a useful management signal.

• ISO 3834 may support welding quality management where applicable.

• ISO 9606 certified welders may matter for manual welding programs.

• AWS-qualified procedures or welders may be relevant for certain markets.

• Gauge control and inspection records help prove repeatability.

Supplier-fit scorecard

Cost Drivers, TCO, and ROI

Quoted unit price drivers

• Material grade, thickness, sheet size, yield, and scrap utilization

• Cut complexity, pierce count, internal features, small radii, and edge length

• Nitrogen cutting, low-burr requirements, and special edge preparation

• Bending steps, machining, drilling, tapping, welding, hardware insertion, and assembly

• Coating type, masking, outsourced finishing, packaging, labeling, and documentation

• First article reports, fixture checks, 100% inspection, or dimensional reports

Hidden costs buyers often miss

Laser cutting often improves ROI through faster engineering changes, lower tooling exposure, better SKU flexibility, and reduced installation rework. The lowest unit price may still lose if fit-up, finish life, or lead time is weak.

Implementation Risks and How to De-Risk the Program

Practical validation plan

• Provide load, orientation, vibration, environment, mating-part, and service-access data.

• Run a first article with full dimensional review before volume release.

• Use functional gauges where the mounting position must repeat across lots.

• Validate burr condition, edge safety, coating thickness, and thread engagement.

• Use pilot lots to test fit, fastener retention, corrosion exposure, and field serviceability.

• Document the approved revision, material certs, weld procedure, finish, and inspection plan.

Application-Specific Design Guidance for Farm Machinery Brackets

Driveline, hydraulic, and engine-adjacent systems

These brackets face vibration, heat, oil exposure, and frequent service access. They need stiffness, fastener retention, thread integrity, weld quality, and clearance for hoses, belts, shafts, and guards.

Sensors, guards, and electrical control components

These brackets depend on accurate positioning and low deflection. A small shift can affect sensor readings, switch actuation, camera alignment, GPS-related hardware, cable routing, or connector clearance.

Frames, attachments, and heavy-duty supports

Structural brackets may need thicker plate, gussets, formed flanges, reamed holes, and stronger weld fixtures. Shock loading, mud packing, abrasion, and service replacement should be reviewed before release.

Tanks, reservoirs, and fluid systems

Fluid-system brackets must account for tank weight, sloshing loads, chemical exposure, hose movement, and maintenance access. Coatings should be compatible with hydraulic oil, fuel, fertilizer, and washdown chemicals.

Corrosion-sensitive applications

Fertilizer spreaders, sprayers, livestock equipment, washdown zones, coastal operations, and exposed outdoor assemblies may justify stainless steel or upgraded coating systems. Cut edges, tapped holes, welds, and damaged finish areas need special protection.

What a Strong RFQ Should Include

Required technical inputs

• 2D drawing and 3D model with revision control

• Material grade, thickness, finish, and bracket type

• Load case, mounting orientation, vibration exposure, and service environment

• Critical dimensions, datum scheme, thread specs, weld symbols, and edge-break requirements

• Coating color, thickness, masking, corrosion expectations, UV exposure, and chemical exposure

Commercial and quality inputs

• Prototype quantity, pilot lot, first production lot, annual volume, and reorder pattern

• Lead-time target, delivery schedule, packaging, labeling, kitting, and lot control

• First article inspection, material certifications, weld records, coating records, and traceability

• Domestic content, regional sourcing, or compliance-document needs when they apply

What the supplier should return

• Proposed process route from cutting through final inspection

• Tolerance assumptions and any exceptions

• Inspection plan for critical features, including sampling or 100% inspection

• Lead-time breakdown, pricing drivers, setup charges, fixture costs, and gauge costs

• Design risks and recommended changes before production release

RFQ red flags

• The quote is based only on a photo or sample.

• No assumptions are stated for material, tolerance, finish, or inspection.

• No first article process is offered for a position-controlling bracket.

• The low price depends on unapproved material, finish, or process changes.

Representative Case Study Structure for Buyer Review

A verified case record should show how the bracket was specified, produced, inspected, and improved. It should not rely on general claims. The format below gives buyers a practical checklist for supplier evidence.

Tolerance claims should be tied to actual features. A value such as ±0.005 inch may be useful for selected holes, but looser tolerances may reduce cost when the feature is not critical.

Conclusion

Before release, the sourcing team should take these next steps:

• Gather controlled drawings, 3D models, load data, vibration details, and exposure conditions.

• Mark critical-to-function dimensions for holes, datums, bends, threads, and mating faces.

• Request a first article inspection plan and the full manufacturing route.

• Compare quotes on total cost, lead-time realism, process control, and field reliability.

• Validate pilot parts in actual assembly before committing to annual production volume.

FAQ

Q: What is a laser cut steel mounting bracket used for in farm machinery?

A: It mounts and positions guards, sensors, hydraulic parts, alternators, tanks, control boxes, hitch interfaces, trailer hardware, and frame supports. It also helps maintain alignment under vibration, shock, corrosion exposure, and repeated service work.

Q: Is laser cutting better than stamping for agricultural equipment brackets?

A: Laser cutting is usually better for custom, high-mix, low-to-mid volume brackets and frequent design changes. Stamping can be cheaper at high volume when geometry is stable and tooling cost can be spread across many parts.

Q: What material is best for a laser cut steel mounting bracket?

A: Carbon steel works well when cost matters and coating protection is adequate. Stainless steel is often better for fertilizer exposure, washdowns, chemicals, livestock environments, or coastal operations. The best choice depends on load, corrosion risk, and service life.

Q: What thickness should be used for a farm machinery mounting bracket?

A: Thickness depends on load, span, fastener size, vibration, shock, and geometry. Light accessory brackets may use thin sheet or 12 ga material. General supports often use 3 mm to 6 mm. Structural mounts may need 1/4 inch plate or heavier.

Q: What tolerances should buyers expect on mounting brackets?

A: Suitable laser-cut features may reach around ±0.005 inch, and controlled CNC bending may hold around ±0.5 degree. These values are not universal. Tolerances should be assigned to hole locations, datums, bends, threads, and faces that affect fit.

Q: Why does edge quality matter on a laser cut steel bracket?

A: Burrs, dross, taper, oxidation, and excessive heat-affected zones can slow assembly, damage coating, interfere with fasteners, and raise fatigue risk. Clean edges improve handling, welding, corrosion protection, and fit in harsh agricultural environments.

Q: How do suppliers ensure reliable equipment mounting and reliable equipment positioning in production?

A: They control datums, hole locations, bend angles, weld fixtures, coating thickness, and thread quality. Functional gauges or fixtures verify mounting position. First article inspection and production checks should confirm critical features before release.
