Sourcing custom sheet metal components overseas often presents a false dichotomy. Procurement managers feel forced to choose between rock-bottom pricing and acceptable assembly yield. Engineering teams frequently encounter hidden costs during production. These include sharp burrs, warped corners, and tolerance stack-ups. Such defects lead to assembly failures and production downtime. This typically happens when vetting overseas suppliers based on unit cost alone.
Successfully navigating the Chinese manufacturing ecosystem requires a strategic approach. Buyers must move beyond basic requests for quotation (RFQs). They need to evaluate a supplier’s design for manufacturability (DFM) capabilities. They must also assess tooling setup structures and closed-loop quality control systems. This comprehensive evaluation ensures long-term production stability and protects the bottom line.
Volume Dictates Strategy: For micro-batches (1-3 parts), local fabrication often beats overseas sourcing due to setup times and freight; however, Chinese suppliers offer unmatched scalability for prototype & mass-production sheet metal parts.
DFM is Non-Negotiable: Reliable fabricators utilize closed-loop manufacturing and advanced compensation algorithms to correct bend springback and manage Heat Affected Zones (HAZ).
Quality Metrics Matter: Move beyond visual inspections by requiring strict CPK indices (>1.33), material certifications, and specific tolerance stack-up analyses before approving mass production.
Total Cost of Ownership (TCO): True ROI factors in the hidden costs of poor nesting, inadequate surface treatments, and assembly line rejections.
Understanding the fixed costs of sheet metal fabrication helps buyers make informed sourcing decisions. Machine setup time remains identical whether producing one unit or one thousand units. Overseas suppliers often embed hidden management fees into low-volume quotes to cover machine downtime and engineering hours. The setup process involves several distinct phases that consume factory resources before any metal is cut.
CNC Programming: Engineers convert CAD files into machine-readable G-code, assigning specific cutting paths and bend sequences.
Tooling Preparation: Operators select and install the correct punches and dies into the press brake, aligning them to exact specifications.
Material Loading: Technicians stage the raw metal sheets onto the laser cutter bed and calibrate the focal length.
Test Bending: The operator runs a scrap piece to verify the bend angle, measures the result, and adjusts the machine parameters accordingly.
Consider a simple aluminum 4-bend bracket measuring 5"x3"x3". A local fabrication shop might quote $200 or more for a single unit. For micro-prototyping runs of one to five parts, local sourcing remains highly viable. International shipping costs and communication overhead quickly negate any per-unit savings on such small quantities. Local makerspaces or regional shops offer faster turnarounds for these initial iterations.

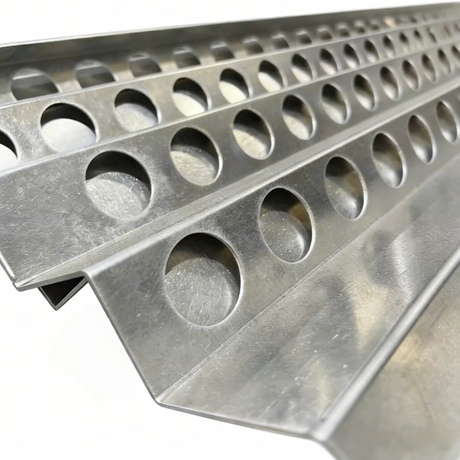

The breakeven point shifts dramatically as volume increases. Once a project moves past the initial prototyping phase, tooling amortization becomes a factor. Shifting production to a reliable Chinese oem sheet metal fabricator yields positive ROI. The initial setup costs spread across hundreds or thousands of units. This economy of scale drastically reduces the per-part price while maintaining strict dimensional tolerances.
Production Volume | Recommended Sourcing Strategy | Primary Cost Driver | Expected Lead Time |
1 - 5 Units | Local Fabrication Shop | Engineering and Setup Time | 3 - 7 Days |
50 - 500 Units | Hybrid Manufacturer | Material and Processing | 14 - 21 Days |
1,000 - 5,000 Units | Overseas OEM Fabricator | Raw Material Yield | 25 - 35 Days |
10,000+ Units | Overseas Automated Facility | Logistics and Freight | 40 - 60 Days |
Selecting the right manufacturing partner depends entirely on the project stage. Different suppliers excel at different production volumes and complexity levels. During the prototype stage, speed and iteration are paramount. Buyers evaluate AI-driven digital quoting platforms for fast turnarounds. These platforms utilize automated DFM checks to flag impossible bends or inadequate hole clearances instantly. They work best for standard prototypes requiring minimal secondary processing.
Transitioning from pilot runs to mass production requires a different approach. Procurement teams compare traditional precision factories against hybrid manufacturers. Traditional factories excel at complex, high-tolerance assemblies requiring strict statistical process control. Hybrid manufacturers operate Chinese facilities but maintain local Western engineering offices. This model significantly reduces communication friction and simplifies contract negotiations.
Bend springback poses a significant challenge in sheet metal forming. When bending high-tensile materials, the metal naturally attempts to return to its flat state. This elastic recovery alters the final bend angle. For example, bending Aluminum 6061-T6 to a 90-degree angle might require overbending the material to 93 degrees to compensate for the springback. Top-tier suppliers solve this using closed-loop manufacturing. They deploy press brakes equipped with pressure-sensor-based automatic adjustment systems. These sensors measure the angle in real-time and apply compensation algorithms to achieve exact specifications.
Multi-part assemblies introduce the risk of tolerance stack-ups. A deviation of 0.5mm on a single bracket might seem acceptable. If four such brackets assemble together, the total deviation reaches 2.0mm. This causes severe fitment failures downstream. Front-loaded DFM prevents these issues. Competent engineers analyze the entire assembly model before cutting metal. They adjust individual part tolerances to ensure the final assembly fits perfectly. A thorough DFM review includes several specific checks.
Hole-to-Edge Distance: Ensuring holes are positioned far enough from the edge to prevent the material from tearing or bulging during the bending process.
Bend Radius Verification: Confirming the inside bend radius matches or exceeds the material thickness to avoid cracking along the bend line.
Flange Width Requirements: Checking that flanges are wide enough for the press brake tooling to grip securely without slipping.
Grain Direction Alignment: Orienting the flat pattern so that bends occur perpendicular to the material's grain direction, reducing the risk of fracture.
Accurate flat pattern development relies on understanding the K-factor. The K-factor represents the ratio of the neutral axis to the material thickness. When metal bends, the inside compresses while the outside stretches. The neutral axis remains unchanged. If a material is 2mm thick and the neutral axis sits at 0.8mm from the inside edge, the K-factor is 0.4. Engineers calculate the Y-factor using the formula: Y-factor = K-factor * (Π/2). Assess a supplier's engineering team on their ability to calculate these factors accurately for different alloys.
Material utilization efficiency directly impacts the unit cost. Advanced nesting software optimizes part placement on standard sheet sizes. Common industrial sheet sizes include 36"x96" and 48"x120". Efficient nesting minimizes raw material waste and reduces scrap costs. The software rotates and interlocks irregular shapes to maximize the yield from every single sheet of metal.
Controlling the Heat Affected Zone (HAZ) maintains structural integrity. High-power laser clusters exceeding 15kW are necessary for cutting thick plates over 10mm. These powerful lasers cut rapidly, minimizing thermal distortion along the edges. For aesthetic parts, engineers specify nitrogen-assisted cutting. Nitrogen displaces oxygen during the cut, preventing edge oxidation. This technique achieves smooth Ra 1.6 surface finishes straight off the machine.
Choosing the correct metal alloy dictates the performance and longevity of Custom Sheet Metal Parts. Stainless steel offers excellent durability but varies widely by grade. The 300 series provides superior corrosion resistance. Grade 316 includes molybdenum for maximum protection in marine environments. Grade 304 offers excellent formability and welding characteristics for general use. The 400 series is magnetic. Grade 410 is heat-treatable for added strength, while grade 430 provides a cost-effective solution for indoor applications.
Aluminum grades balance formability against structural strength. Grade 1100-H14 is highly ductile but lacks high tensile strength. Grade 3003-H14 adds manganese for better strength while remaining workable. Grade 5052-H32 is the industry standard for sheet metal, offering excellent bending properties and a yield strength of approximately 193 MPa. Grade 6061-T6 provides exceptional strength at 276 MPa but cracks easily if bent at sharp angles without proper heating.
Alternative metals serve specific functional requirements. Brass and copper offer superior electrical conductivity. Designers specify them for premium aesthetic applications or internal electrical busbars. Regardless of the material, gauge thickness dictates structural rigidity. Standard sheet metal gauge metrics operate on an inverse scale. A lower gauge number indicates a thicker sheet. The steel baseline uses 41.82 lbs/sq ft/inch to calculate weight and tooling requirements.
Material Grade | Primary Characteristic | Common Applications | Formability Rating |
Stainless Steel 304 | General Corrosion Resistance | Kitchen equipment, enclosures | Excellent |
Stainless Steel 316 | Marine-Grade Durability | Chemical tanks, boat fittings | Good |
Aluminum 5052-H32 | High Workability | Electronic chassis, brackets | Excellent |
Aluminum 6061-T6 | High Structural Strength | Aerospace components, frames | Poor (Requires large bend radius) |
Engineers utilize a process decision matrix to optimize production. They must know when to choose sheet metal fabrication over CNC machining, high-pressure die casting, or extrusion. Sheet metal excels for thin-walled enclosures and brackets. CNC machining suits solid, complex geometries requiring tight tolerances. Die casting becomes economical only at massive volumes due to high tooling costs.
Core forming and shaping capabilities define a fabricator's versatility. CNC bending creates precise angles. Deep drawing forms seamless hollow shapes like sinks or casings. Hydroforming uses fluid pressure to shape complex curves without tooling marks. Spinning is ideal for symmetrical tubular parts like lighting reflectors.
Edge and structural reinforcement techniques enhance part durability. Punching holes and slots removes weight while increasing rigidity. Curling removes sharp edges, making parts safe for handling. Wire edging rolls the metal around a wire for maximum perimeter strength. Grooved seaming joins two sheets securely without welding.
Advanced surface treatments protect the metal and enhance aesthetics. Anodizing creates a durable oxide layer on aluminum, available in clear, black, or blue. Heavy galvanization coats steel in zinc for robust rust prevention. The galvanization process involves degreasing, pickling, fluxing, and dipping the part into a zinc bath at 450°C. Specialized optical blacken treatments serve the electronics industry. They create light-absorbing surfaces for internal camera and sensor housings.
Visual checks alone cannot guarantee production stability. Buyers establish a verifiable custom sheet metal parts quality inspection protocol. The standard inspection toolkit includes calibrated micrometers, digital calipers, and precision protractors for dimensional verification. Coordinate Measuring Machines (CMM) verify complex geometries against the original 3D CAD models.
Statistical process control is mandatory for mass production runs. A Process Capability Index (CPK) greater than 1.33 indicates that the manufacturing process is stable. It means the process mean is at least four standard deviations away from the specification limits. This metric guarantees batch consistency across thousands of units. The First Article Inspection (FAI) process involves several rigorous steps.
Material Verification: Confirming the alloy composition using X-ray fluorescence (XRF) scanners to ensure the raw material matches the certification.
Dimensional Inspection: Measuring all tolerances, hole diameters, and bend angles against the original 2D engineering drawing.
Surface Finish Analysis: Using a profilometer to verify the Ra value meets the aesthetic or functional specifications.
Assembly Fit Test: Mating the manufactured part with its corresponding components to ensure proper alignment and clearance.
Address common defects proactively in the Quality Control Plan (QCP). Specify acceptable limits for sharp burrs, warped corners, and hole misalignment. Define exactly what constitutes a pass or fail. Clear documentation prevents disputes and ensures the factory understands the quality threshold.
Global supply chains demand strict adherence to international standards. Verify that the supplier holds active ISO 9001 certifications for quality management. For operations in the automotive or heavy machinery sectors, demand IATF 16949 certification. This standard enforces rigorous defect prevention and supply chain variation reduction.
Assess the factory's sustainability practices. Responsible manufacturers use low-VOC (Volatile Organic Compounds) coatings to minimize air pollution. They implement strict metal scrap recycling programs to reduce material waste. Verify their adherence to local labor laws. Ethical sourcing requires fair wages, reasonable working hours, and safe factory environments.
Agricultural equipment operates in brutal environments. Sourcing components for this sector requires specific manufacturing capabilities. Farm machinery demands heavy-gauge materials to withstand constant impact from rocks and debris. High-vibration resistance is mandatory to prevent structural fatigue during field operations. Common components include tractor hoods, combine harvester side panels, and heavy-duty mounting brackets.
Surface protection prevents rapid degradation. Durable surface coatings protect against corrosive ammonium nitrate fertilizers and continuous UV exposure. When handling farm machinery sheet metal component sourcing, verify the supplier's equipment capacity. The factory must possess large-format CNC bending machines capable of handling oversized equipment panels exceeding two meters in length. The powder coating process for these parts typically involves a phosphate wash, electrostatic spray application, and curing in an oven at 200°C.
The telecommunications industry requires absolute precision to protect sensitive electronics. A recent project involving 5G base station enclosures highlights the importance of advanced fabrication. The initial production run suffered from inconsistent flange bending, with deviations of ±1.5°. This seemingly minor error caused waterproof gasket failures. The assembly yield plummeted to 82%, risking severe field failures and water ingress.
The engineering team implemented a comprehensive solution. They introduced automated CNC bending adjustments using pressure sensors to eliminate springback variations. They applied specialized chromate pre-treatments to enhance paint adhesion on the aluminum chassis. They utilized optical blacken machining for the internal camera and sensor housings to prevent light reflection and signal interference.
The outcome validated the technical approach. The new enclosures passed rigorous 1,000-hour salt spray tests without any signs of corrosion. The factory achieved consistent Ra 1.6 surface finishes across all exterior panels. The assembly yield increased to 99.8%, eliminating costly field maintenance and gasket leaks.
Sourcing components overseas remains highly profitable when executed correctly. Buyers enforce strict DFM standards and evaluate suppliers based on technological capability rather than just the lowest quote. A strategic approach minimizes hidden costs and maximizes assembly yield. Filtering potential suppliers logically involves assessing their ability to handle specific volume requirements. Verifying in-house tooling capabilities and demanding proof of quality control systems through CPK data separates reliable partners from risky vendors.
Take these actionable next steps to secure the supply chain:
Request a comprehensive equipment list from the supplier before deciding to buy custom sheet metal parts from China to verify their in-house capabilities.
Order a small sample run and demand a complete First Article Inspection (FAI) report.
Verify material certifications using a third-party testing laboratory before authorizing mass production.
Establish a clear Quality Control Plan (QCP) defining acceptable defect limits for prototype & mass‑production sheet metal parts.
A: Request a Mill Test Certificate (MTC) before production begins. Upon receiving the parts, utilize a third-party laboratory to perform Positive Material Identification (PMI) testing. X-ray fluorescence (XRF) scanners can instantly verify the exact chemical composition of the alloy.
A: Prototypes typically require 5 to 10 business days, depending on complexity and surface finish. Mass production tooling and initial batch runs generally take 3 to 5 weeks. Shipping via sea freight adds an additional 4 to 6 weeks to the total timeline.
A: Machine setup times are fixed regardless of volume. Overseas suppliers often include management and engineering fees in micro-batch quotes to cover downtime. When combined with international express shipping costs, local fabrication becomes more economical for quantities under five units.
A: A comprehensive report must include a First Article Inspection (FAI) document. It should detail dimensional measurements against the CAD model, material certifications, surface roughness (Ra) readings, and a CPK analysis demonstrating process stability for mass production.
A: Engineers calculate the K-factor by dividing the neutral axis location by the material thickness. They determine the Y-factor using the formula: Y-factor = K-factor * (Π/2). Advanced fabricators use 3D CAD software to simulate these values based on specific alloy tensile strengths.
A: Agricultural equipment requires extreme corrosion and impact resistance. Heavy hot-dip galvanization provides a thick zinc coating for rust prevention. Electrophoretic deposition (E-coating) followed by a UV-resistant powder coat offers the best combination of durability and aesthetic longevity.
