Customizing the size of a sheet metal electrical control box enclosure starts from the real installation condition, not from a simple rectangular CAD model. In bracket-mounted applications, sizing failures usually come from mounting clearance, cable bend radius, bend limits, coating buildup, gasket space, or fastener loads. The enclosure may fit the electronics on paper, yet fail during forming, assembly, field installation, or service.
The risk increases when the box mounts on a Tractor Fender Support Bracket or similar support structure. The final size must protect components, preserve service access, seal against the environment, and transfer loads into the bracket without panel flex. It must also stay within practical sheet metal rules. This guide gives engineering and sourcing teams a sizing method that works from the inside out, then checks material, thickness, ventilation, grounding, IP/NEMA targets, coating allowances, validation, and total cost.
Enclosure size should be defined from the inside out: component stack-up, cable bend radius, airflow, tool access, service access, and stable mounting points.
Material, thickness, bend radius, flange length, K-factor/bend allowance, and hole-to-bend distances directly change feasible external dimensions and cost.
Mounting on a Tractor Fender Support Bracket adds vibration, load-path, and fastener-spacing requirements that can force larger flanges, ribs, or reinforced formed steel component features.
IP/NEMA sealing, EMI shielding, ventilation, coating buildup, and grounding masks must be planned before finalizing cutouts and mating dimensions.
The lowest quoted size is not always the lowest TCO; prototype validation, tolerance control, finish allowances, and assembly access prevent downstream delays.
The sizing brief should begin with the working function of the enclosure. It must contain electrical components, terminals, wiring, cable glands, ventilation features, service labels, and any inspection points. It must also survive the actual environment, not an assumed indoor condition. Dust, splash, washdown, corrosion, UV, vibration, shock, and temperature swings can all change the required size.
Compliance targets should be confirmed before drawings are frozen. Grounding, EMI shielding, IP ratings, NEMA ratings, and field-service expectations affect wall layout and cover design. A box opened often for fuse replacement needs more access space than a sealed box opened only during scheduled maintenance.
Sheet metal is often selected because it combines durability, heat spreading, and flexible customization. It supports flanges, studs, hinges, louvers, PEM hardware, welded tabs, and local reinforcements. The conductive body can also support grounding and EMI shielding when finish masks and bonding points are designed correctly.
For custom or mid-volume projects, precision sheet metal fabrication can avoid the tooling cost of molded housings. It also allows practical revisions during prototype and pilot runs, which is useful when the mounting bracket and enclosure must be tuned together.
A useful enclosure size is not only compact. It must satisfy the operating, assembly, and service requirements at the same time. The following criteria should be stated before the first RFQ package is released:
Fit: all internal components install without interference.
Reliability: walls, seams, and mounting points resist flex and vibration.
Maintainability: covers, fasteners, terminals, fuses, and wiring remain accessible.
Manufacturability: dimensions follow realistic forming, welding, and tolerance limits.
Cost control: the design avoids unnecessary thickness, welding, cosmetic work, and freight size.

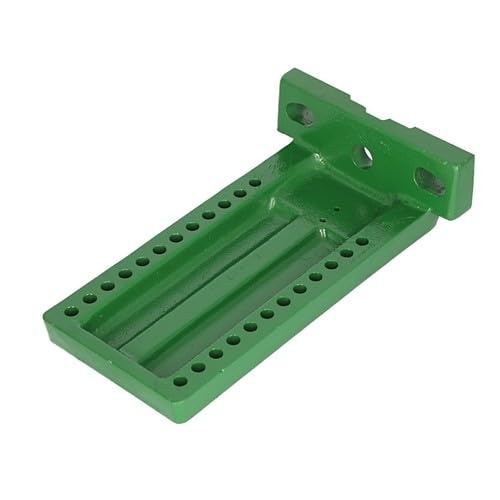

Bracket mounting turns the enclosure into part of a structural system. The available footprint may be limited by tire sweep, fender geometry, harness routing, hydraulic lines, and operator access. Bolt spacing, offset, and clearance are no longer secondary details.
A matching sheet metal fender support bracket may require larger enclosure flanges, slotted holes, formed ribs, or reinforced mounting zones. These features increase the real outside envelope, even when the electronics need less space.
Inside-out sizing is the most practical method. The layout should include the PCB, DIN rail, relays, power supplies, contactors, wire duct, terminal blocks, grounding studs, fuse holders, and cable glands. Tall components, connector backshells, and fuse access paths should be modeled before box depth is set.
Component placement also affects enclosure shape. Opposed connectors may make an F-shaped or two-piece enclosure more efficient than a simple folded box. A service-heavy side may justify an L-shape or removable access panel. The smallest rectangular volume is rarely the best serviceable design.
Many enclosure redesigns come from missed clearances. The drawing may show enough component space, while the real assembly has no room for wires, tools, or gasket compression. These allowances should be added before the outer size is calculated.
Allowance item | Why it affects size | Common sizing impact |
Cable bend radius | Wires and glands need room after installation | Can increase depth or side clearance |
Tool access | Screwdrivers, sockets, and hands need approach space | Can require wider service openings |
PEM hardware and standoffs | Heads and studs project into the internal volume | Can shift boards and wire ducts inward |
Gasket and lid overlap | Seals need even compression and enough land width | Can enlarge flanges and cover dimensions |
Viewing window or label area | Operators may need inspection without opening the box | Can require a stiffer door or larger panel |
Internal bends should be modeled as real radii. Sharp-corner assumptions create false clearance in tight packages. A small inside bend radius may be around 0.030 in / 0.76 mm, but actual values depend on material, thickness, and tooling.
Return flanges, hems, formed corners, and stiffening beads should also appear in the assembly model. Face-to-face mating parts can collide after forming if the internal radius is ignored. Supplier bend data should be used before the outer dimensions are released.
External size is built by adding wall thickness, bend radii, return flanges, mounting flanges, seam design, lid overlap, and finish allowances. The shortest outside dimension is not always the least expensive one. A very tight box may require special tooling, difficult assembly, or extra inspection.
The installation path should be checked with the same care as the final installed position. The enclosure needs room for insertion, alignment, fastening, wire connection, and later removal. A design that only fits after being magically placed in position is not ready for production.
A folded box works well for simple layouts and low part count. A two-piece cover improves access and reduces rework risk when internal components change. A welded enclosure improves rigidity and sealing, but it adds heat distortion, grinding, and finishing labor.
Rack-style or flange-mounted designs suit standardized machine frames and front-service layouts. The choice should follow access, load, sealing, and production volume. Cosmetic preference should not drive the architecture before those requirements are checked.
Geometry can reduce size when it follows the electrical layout. A U-shape is simple and accessible, but the width-to-height ratio should remain practical. A common forming guideline keeps that ratio near 2:1 or lower for many U-channel designs.
U-shape: efficient for simple bases and accessible sides.
L-shape: useful when one side needs open assembly access.
F-shape: helpful when connectors exit from opposite sides.
Rack-style: effective for front service and standardized mounting rails.
A small window or access panel can keep the whole enclosure smaller. Operators may need to view indicators, inspect a meter, or replace a fuse without removing the main cover. Polycarbonate windows are useful, but the cutout must be stiffened and sealed.
Door and panel fastener spacing should support gasket compression. Large openings can bow thin sheet, especially after coating or vibration exposure. Local lips, return flanges, or a thicker cover may be needed.
Separate bracket and enclosure parts are often safer when impact or vibration loads are high. The bracket handles structural force, while the enclosure remains a sealed electrical body. Replacement also becomes simpler if the external support is damaged.
A dedicated formed steel component can create a stronger load path than asking a thin enclosure wall to carry bracket loads directly. The trade-off is more parts and more assembly steps.
| Material | Common starting thickness | Advantages | Cautions | Size effect |
Cold-rolled steel | About 1.2-2.5 mm | Strong, economical, easy to reinforce | Needs corrosion protection | Compact, but weight rises quickly |
Stainless steel | About 1.0-2.0 mm | Good corrosion resistance and strength | Higher material and fabrication cost | Can reduce coating needs in harsh service |
Aluminum | About 1.0-3.0 mm | Lightweight, conductive, good heat spreading | Some grades need larger bend radii | Helps when bracket weight must be limited |
Material grade changes bend limits and cracking risk. Aluminum 5052 bends more safely than 6061 in many formed enclosures. Aluminum 6061 can support machined features and stiffness, but tight bends may crack. Copper C110 conducts heat and electricity well, but its soft threads often require self-clinching hardware.
Specialty alloys such as 4130 chromoly or titanium should be used only when strength-to-weight or service conditions justify higher cost. In vibration-heavy bracket mounting, heavier-gauge steel can be more reliable than a lighter alloy if it shortens the load path.
More thickness improves stiffness, but it adds weight, material cost, larger bend radii, and more press-brake tonnage. It can also force wider flanges and longer fasteners. These changes may enlarge the final outside dimensions.
Stiffness can often be added more efficiently with hems, ribs, beads, return flanges, embossed pads, or gussets. Thin material may still need local reinforcement around hinges, welded seams, fasteners, and bracket interfaces. Thickness should follow load and span, not habit.
Confirm corrosion exposure and the finish system.
Define vibration, shock, and expected service life.
Check thermal spreading needs near hot components.
Plan conductive paths for grounding and EMI control.
Review bend cracking, welding distortion, and cosmetic expectations.
A common starting rule uses an inside bend radius near one material thickness. Aluminum often needs 1.5 times thickness or more, depending on grade and temper. Bend direction relative to grain should be reviewed when cracking risk matters.
K-factor, bend deduction, and bend allowance should come from the supplier’s tooling data. CAD defaults may not match the press brake, tooling radius, or shop standard. External dimensions and flat patterns should not be frozen until those values are checked.
Holes too close to bend lines can stretch, ovalize, or tear. A common starting practice keeps cutouts at least the minimum inside bend radius away from the bend line. Supplier guidance may require more space for critical features.
Bend relief and corner relief help when features must sit near bends. Laser-cut holes should be verified after forming, not only in the flat pattern. This matters for fastener holes, gasket lands, and bracket-interface slots.
Minimum flange length often starts around three to four times material thickness. The final value depends on tooling, bend radius, material, and the load carried by that flange. A flange holding fasteners or gasket compression needs more control than a simple return lip.
Return flanges and hems improve stiffness and reduce sharp service edges. Uniform wall thickness keeps forming and coating more predictable. Deburring should be stated clearly for cable entries, access edges, and gasket contact areas.
Laser-cut edge quality affects fit, bend consistency, and appearance. Burrs can interfere with gasket lands, grounded interfaces, and tight mating parts. Drawings should identify cosmetic faces separately from functional faces. This prevents unnecessary polishing on hidden surfaces while protecting seal and service areas.
The mounting design should include the full load path. Weight, internal component mass, vibration, shock, side impact, and torsion all matter. Loads move from the enclosure wall into the flange, fastener, bracket, fender, and machine frame.
If one link is too thin or unsupported, it controls the design. Mounting holes alone do not prove strength. The enclosure may need a thicker local pad, a doubler plate, a gusset, or an embossed feature to prevent oil-canning.
Hole spacing should match the real bracket, not only the nominal drawing. Slotted holes can support field adjustment, but oversized slots reduce clamp area and stiffness. They should be used only where production or retrofit variation requires them.
Critical bracket-interface dimensions should be marked for inspection. Backing plates, large washers, welded nuts, and formed pads can spread clamp force. These details support stable mounting without making the entire enclosure heavier.
PEM self-clinching hardware is useful for covers and access panels opened repeatedly. Rivets work well for permanent internal brackets. Welded studs and nuts provide high pull-out strength when fixtured correctly. Threaded inserts help softer materials such as aluminum or copper.
Self-tapping screws should be reviewed carefully in serviceable assemblies. They can create burrs, sharp protrusions, weak threads, and inconsistent torque after repeated removal. Fastener access must also remain clear after wiring is installed.
Grounding should not depend on painted contact surfaces unless the coating is intentionally pierced or removed. Powder coat is insulating. Dedicated studs, masked bonding pads, conductive primer, serrated grounding hardware, or chromate conversion coating may be required.
Finish compatibility should be checked with galvanic corrosion in mind. A conductive joint can still corrode if dissimilar metals and moisture are ignored. Grounding details should be shown on the drawing, not left to assembly judgment.
The enclosure should be trial-fitted to the actual bracket before volume production. Validation should check bracket flatness, hole-location variation, clearance to fender movement, fastener retention, gasket compression, and wire fatigue. This test is especially useful for mobile equipment, where vibration can expose weak interfaces quickly.
Natural convection works best when cool air enters low and warm air exits high. Hot components should stay away from dead-air corners. Vents should not be blocked by the fender, bracket, wiring, or nearby structure.
If airflow is limited, the enclosure may need more internal volume or a different layout. Power supplies and heat sinks often need clearance around their sides. Cable ducts should not block the main heat path.
Large perforated areas can weaken panels and cause warpage. This is more likely when perforations sit near bends, gasket lands, or mounting zones. A pre-flattened perforated mesh insert can sometimes provide airflow with less distortion.
Vent open area should be balanced against stiffness, appearance, sealing, and EMI requirements. Vent placement should be validated in the installed position, not only on an open bench.
Larger openings help heat escape, but they can reduce shielding. Industrial control boxes may need honeycomb vents, conductive mesh, bonded seams, or conductive gaskets. Removable covers should keep electrical continuity across the seam when EMI control is required.
Higher sealing targets require more overlap, better cover stiffness, closer fastener spacing, and more careful cable entry. IP65, IP66, IP67, NEMA 4, and NEMA 4X designs usually need wider gasket lands and tighter process control.
NEMA ratings may include corrosion, ice, oil, or construction requirements that an IP number does not cover. The rating should be selected from real exposure, not copied from a previous project.
The gasket path should be continuous and free of sharp interruptions. Flange width must allow gasket compression, fastener clearance, and coating tolerance. Large covers may need formed lips or more fasteners to prevent bowing.
Gasket material should match water, oil, UV, temperature, and compression-set exposure. The drawing should state whether gasket-related dimensions apply before or after coating.
General and critical tolerances should be separated. ISO 2768 or supplier-standard tolerances may suit non-critical bends and outside edges. Mounting holes, gasket lands, door fits, and electronics cutouts often need tighter control.
Wider symmetric tolerances reduce cost when function allows them. Critical-to-function dimensions should be limited to features that affect sealing, bracket fit, assembly, or electrical performance.
Powder coat adds measurable thickness. A common reference is about 0.003-0.005 in per side. Tight cutouts may need roughly 0.006-0.010 in total compensation, depending on the finish specification.
Drawings should state whether dimensions apply to bare metal or finished parts. Threads, PEM hardware, gasket lands, grounding pads, and sliding interfaces may need masking to preserve fit and function.
Cold-rolled steel often uses powder coating, galvanizing, or plating. Stainless steel may require passivation when corrosion performance matters. Aluminum may use anodizing or chromate conversion coating. Chromate can help when both conductivity and corrosion protection are needed.
State material grade, thickness, and grain direction when relevant.
Define bare-metal dimensions versus finished dimensions.
Identify cosmetic faces and acceptable weld marks.
List coating thickness, color, texture, and masking zones.
Call out first article checks for mounting holes, covers, and cutouts.
Welding creates strong joints and can improve sealing, but it adds heat distortion and finishing labor. Riveting is repeatable and fast, though it may need sealant in weather-exposed designs. PEM hardware is preferred for repeated disassembly and clean threaded access.
Adhesive or bonded flanges can work in selected low-load applications. They must be validated for temperature, vibration, moisture, and chemicals. Attachment method should follow load, sealing, service frequency, cosmetics, and production volume.
Thin sheet below about 0.062 in / 1.57 mm is more vulnerable to heat warpage. Stitch welding, balanced weld sequences, proper fixturing, and post-weld flatness checks help control movement. Short welds spaced along a seam can be suitable where sealing is not required and engineering approval allows it.
Welding near bracket-interface holes needs extra care. Heat movement can shift hole locations enough to create field-fit problems.
CMT welding can reduce heat input compared with conventional MIG in some thin-sheet work. Continuous seams can support weather resistance and EMI continuity, but they increase cost and distortion risk. The process should be selected only when sealing or structural performance justifies it.
PEM insertion force, edge distance, material thickness, and material hardness must match the hardware specification. Weld nuts and studs need fixtures to maintain alignment. Rivet tails, stud projections, and fastener heads should be checked against wiring space and gasket lands.
Cost rises with material type, thickness, bend count, welded seams, hardware insertions, finish complexity, and inspection burden. Oversized boxes can also increase packaging and freight. A small dimensional change can create a large cost change if it forces new tooling or larger shipping volume.
Modifying an off-the-shelf enclosure can be faster for simple indoor applications. A fully custom design pays off when the bracket interface, sealing target, grounding plan, or service layout is unique. Standard boxes may lack flange width, reinforcement, or correct cable-entry geometry.
The first prototype should validate electronics fit, cable routing, bracket alignment, gasket compression, thermal behavior, grounding, and coating compensation. Pilot builds should confirm repeatability. Design freeze discipline reduces repeat engineering charges and late change orders.
Add formed stiffening features before increasing thickness.
Relax tolerances that do not affect fit, sealing, or mounting.
Separate cosmetic requirements from functional requirements.
Standardize hardware and hole sizes across the assembly.
Use modular bracket-and-enclosure designs when service improves.
The supplier should explain material range, bend-length capacity, press-brake tonnage, welding options, finishing processes, inspection control, and enclosure experience. It should also understand gaskets, grounding masks, EMI shielding, PEM hardware, and outdoor assemblies.
A supplier that can fabricate both enclosure and bracket as a matched system can reduce interface risk. It can also advise on bend allowance, coating buildup, hole compensation, and bracket load paths before quoting production volume.
A complete package includes 2D drawings, 3D CAD, BOM, exploded views, finish notes, tolerance notes, material specifications, and inspection requirements. It should also include mounting loads, environmental assumptions, IP/NEMA target, grounding needs, service access requirements, and photos or models of the actual installation space.
First article inspection should check flatness, hole locations, cutout sizes, coating thickness, thread quality, cover fit, and gasket compression. Trial assembly should include electronics, harnesses, cable glands, gasket, mounting hardware, and the bracket before release to volume production.
No discussion of bend relief, K-factor, or finish buildup.
No review of mounting loads or vibration exposure.
Unrealistically tight tolerances without cost reasoning.
No plan for grounding pads or gasket compression.
Treating the enclosure as a generic box while ignoring the bracket interface.
Thin welded panels and large vent fields can distort quickly. Risk falls when perforated inserts replace full-panel perforation, welds are spaced sensibly, and flatness checks are part of the control plan. High-load bracket holes should not sit in weakened vent areas.
Cracking risk increases when bend radii are too tight, cutouts sit near bend lines, or bend direction conflicts with material grain. Supplier-approved bend rules, relief notches, and early flat-pattern review reduce this risk before the prototype stage.
Field failures often come from missed harness space, absent tool clearance, incorrect bracket flatness assumptions, or ignored coating buildup. A real installation trial is the direct way to catch these problems before production stock is made.
Common service problems include inaccessible fasteners, painted grounding surfaces, uneven gasket compression, stripped self-tapping screws, and undersized access panels. Service access should be designed into the enclosure size, not added after wiring is complete.
Overdesign adds material, freight, installation effort, and load on the support bracket. The best enclosure size is the smallest dimension set that still satisfies fit, service, sealing, thermal, grounding, and bracket-load requirements in production.
Confirm PCB, DIN rail, relays, terminal blocks, and power supply envelope.
Reserve cable bend radius, connector backshell depth, and gland space.
Check tool access in the installed position.
Verify airflow path and heat-generating component spacing.
Confirm material grade, thickness, grain direction, and finish.
Check bend radius, K-factor, bend allowance, and relief features.
Review minimum flange length and hole-to-bend distance.
Add deburring, hardware insertion, and masking notes.
Verify bracket bolt pattern, load path, reinforcement, and adjustment slots.
Define vibration, shock, corrosion, washdown, UV, and temperature exposure.
Freeze grounding, EMI, gasket, IP/NEMA, and cable sealing requirements.
Assign critical finished dimensions to first article inspection.
The final enclosure size should be released only after fit, service, sealing, thermal, grounding, coating, and bracket-load requirements are checked together. The following next steps keep the project practical:
Build a complete internal layout with cable bend radius and tool access.
Freeze material, thickness, finish, IP/NEMA target, and service requirements.
Request supplier DFM review for bends, flanges, coating, and bracket loads.
Prototype the enclosure and bracket together before production approval.
A: The size starts with internal components, then adds cable bend radius, tool access, airflow, wall thickness, bend radii, gasket space, coating allowance, and mounting flange space. External dimensions should be finalized only after these constraints are modeled together.
A: The best material depends on vibration, corrosion, weight, thermal needs, grounding, and finish requirements. Cold-rolled steel suits many industrial uses, stainless steel supports corrosive service, and aluminum reduces weight while improving heat spreading.
A: A common starting guideline keeps holes and cutouts at least the minimum inside bend radius away from the bend line. Critical features should follow the supplier’s actual bend rules because material, thickness, and tooling change safe distances.
A: A common starting point is three to four times material thickness. Final flange length depends on tooling, bend radius, material, and whether the flange carries fasteners, gasket compression, or mounting loads.
A: Yes. Powder coat often adds about 0.003-0.005 in per side. Tight cutouts, cover fits, grounding pads, and bracket interfaces may need dimensional compensation or masking to avoid assembly problems.
A: Separate parts are often easier to service and replace. They also isolate the enclosure from structural damage. Welded assemblies may improve rigidity, but they increase distortion, coating complexity, and rework cost.
A: The RFQ should include 2D drawings, 3D CAD, material and finish specs, tolerance notes, mounting loads, environmental targets, grounding requirements, service access needs, inspection points, and the real installation envelope.
